SMARTGUARD Environmental Radiation Monitoring System
SMARTGUARD Environmental Radiation Monitoring System

COMECER

SMARTGUARD Environmental Radiation Monitoring System

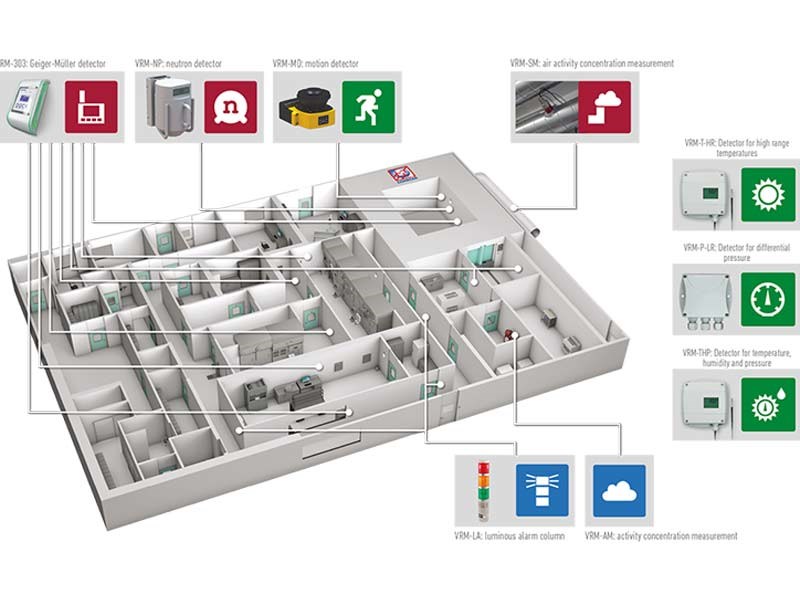

The SmartGuard environmental radiation monitoring system is a monitoring system that allows a PET-Cyclotron facility to be implemented in order to control and monitor the radiation environment in hotcells. The monitoring system is including handling, documentation, exceeded alarm levels and logging of measuring data.
The SMARTGUARD environmental monitoring system is a modular and flexible system with realtime control and virtual maps. It is also possible to export event history with the system and get event notification via mail. It is possible to have 128 detection units and it has been designed with special attention to GMP requirements with focus on cleanable surfaces and out-of-sight cabling.



Smart Geiger radiation monitor
Smart Geiger radiation monitor

COMECER

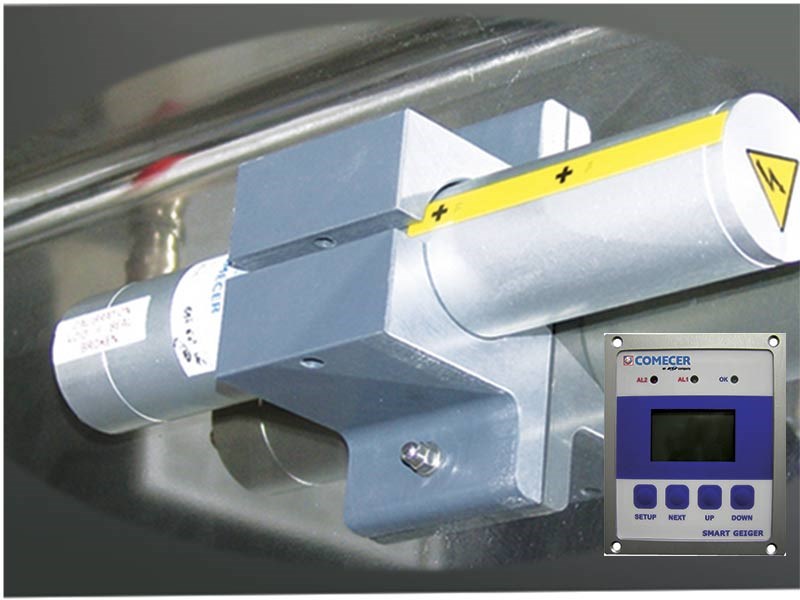

Smart Geiger radiation monitor

Hot Cell Radiation Monitor
Comecers SMART GEIGER is a monitor for detection of radioactivity inside hot cells. Its main function is to lock the door when the radiation dose rate rises above a pre-set alarm threshold.

The Comecer SMART GEIGER can also be used to monitor the outlet air duct. When triggered by alarm , the hot cell air inlet and outlet valves are closed (optional supply). The alarm can be set from the membrane keyboard.

The SMART GEIGER consists of a detector probe with electronics that allows reading the measurements and managing the alarms. The radiation-sensitive element (detection probe) is installed inside the hot cell, whereas the counting unit is mounted on the panel. The device has a beam-on signal inlet, which is used to turn off the probe high voltage. The SMART GEIGER unit includes two energy compensated GM tubes (model ZP1201 and ZP1313 or equivalent); this makes it possible to reach a high dose rate range and increase the lifetime of GM tubes due to minimisation of GM saturation. The monitor uses a single probe both for air exhaust monitoring and for radiation detection inside the hot cells. The monitor is password-protected (two password levels, which can be changed by the user)



Speedy Glove hotcell accessories
Speedy Glove hotcell accessories

COMECER

Speedy Glove hotcell accessories

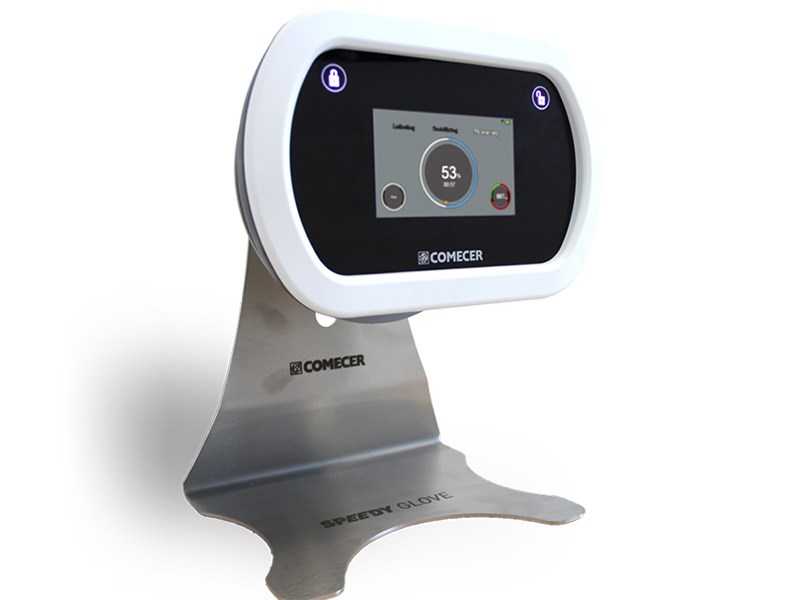

The Speedy Automatic glove tester is for safe testing of gloves used in hotcells. The Comecer speedy Glove is a battery-powered glove tester that is testing leaks on gloves installed on isolators or RABS. The tester works especially well in areas where a strict separation between the isolated area and the external environment is required. The system performs pressure decay integrity tests. Some of the main features are high accuracy, Complete touch-screen, RFID technology and is made ready for Wifi.

The Speedy glove tester is VPHP compatibility for reverse test and is also cGMP compliant.
