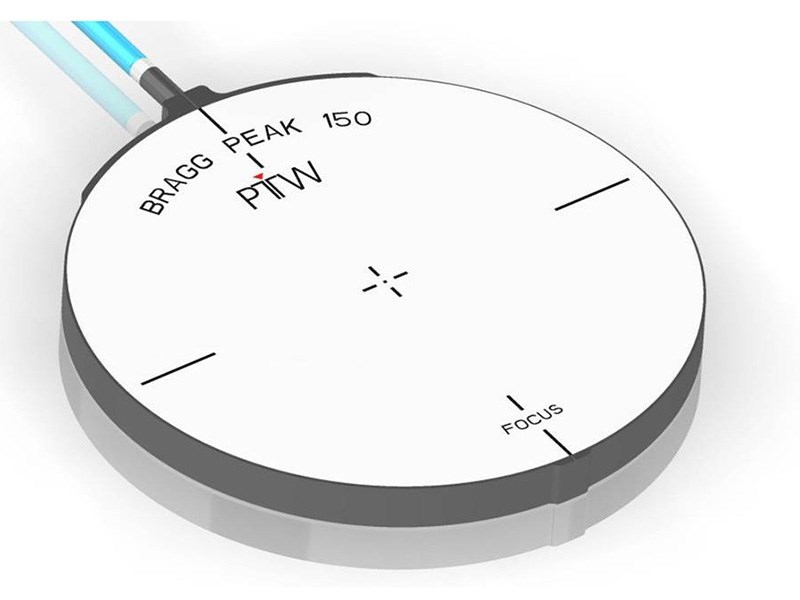

Bragg Peak 150 Type 34089
Bragg Peak 150 Type 34089

PTW

Bragg Peak 150 Type 34089

The PTW Bragg Peak 150 is a very large area plane-parallel chamber for dosimetry in proton beams. It is designed to measure the exact location of the Bragg peak in the therapy proton beams. The large diameter of the chamber allows the measurement of the proton pencil beam diameter including the beam halo.

The PTW Bragg Peak chamber is waterproof and can be used in air behind a water column or in a water phantom. In water the chamber is very suitable for measurement of horizontal beams. It is also possible to use it in measurements of vertical beams in different water depths due to the thickness of the entrance and exit window. Chamber voltage is 400 V norminal.

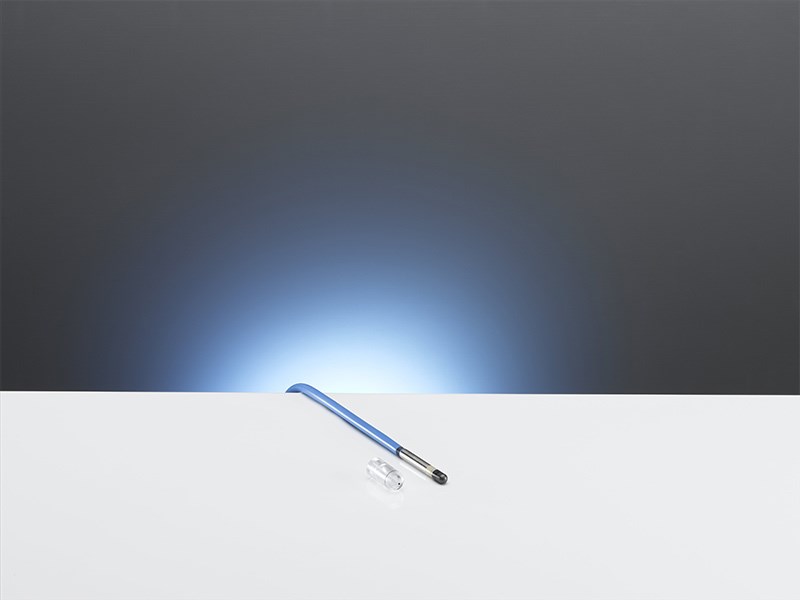

0.125 cm3 Semiflex Chamber - Type 31010

PTW

0.125 cm3 Semiflex Chamber - Type 31010

The 0.125 cm3 Semiflex Chamber - Type 31010 is a standard therapy chamber for scanning systems and for absolute dosimetry. It is
waterproof with semiflexible design for easy mounting in scanning water phantoms. It is waterproof aswell as minimized in directional response.

The sensitive volume is 0.125 cm3, vented to air, with radioactive check device (option).

The 0.125 cm3 Semiflex Chamber type has a minimized directional response.

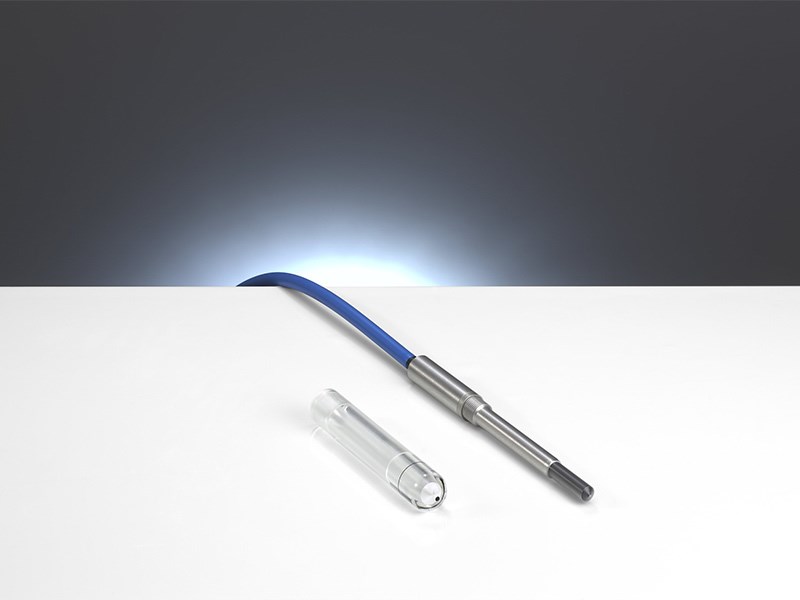

Farmer Chamber - Type 30013 - waterproof

PTW

Farmer® Chamber - Type 30013- waterproof

The PTW Farmer® Chamber - Type 30013 is a Waterproof therapy chamber for absolute dosimetry in high-energy photon, electron and proton beams.

The unit is with fully guarded chamber and has a sensitive volume 0.6 cm3, vented to air. It is designed with acrylic wall, graphited.

PTW Farmer® Chamber - Type 30013 waterproof has an aluminum central electrode aswell as a radioactive check device (option).

In regard to the waterproof chamber it is with acrylic wall and Al electrode for measuring high-energy photon and electron radiation in air,
water and phantom material. It comes with a BNT, TNC or M connector.

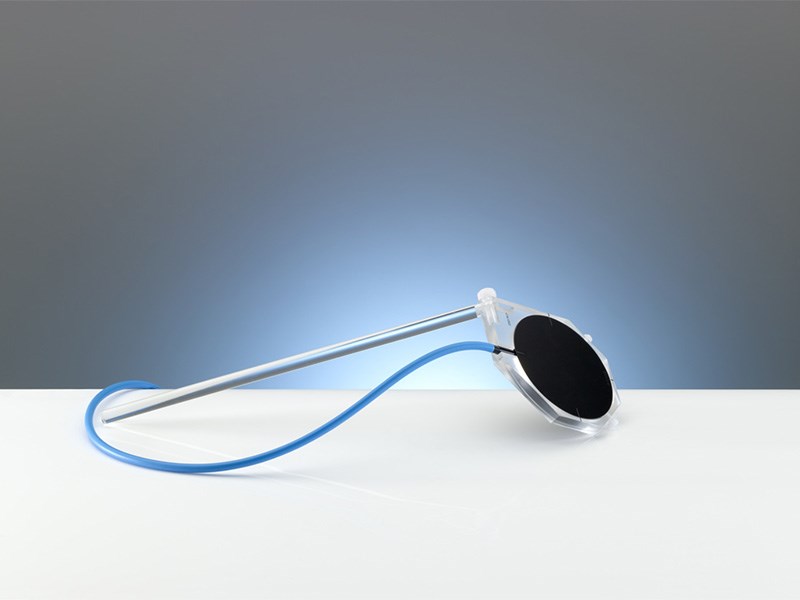

T-REF Chamber - Type 34091

PTW

T-REF Chamber Type 34091

The T-REF chamber 34091 is a reference detector for small fields with BNT, TNC or M connector. It provides a solution to the problem where to put a reference detector in small fields.

The T-REF chamber 34091 has a very low total area density of 206 mg/cm2 and has no measurable perturbation of the beam. It has a high and very stable signal and with no contact to linac head. It is fast and easy to mount.

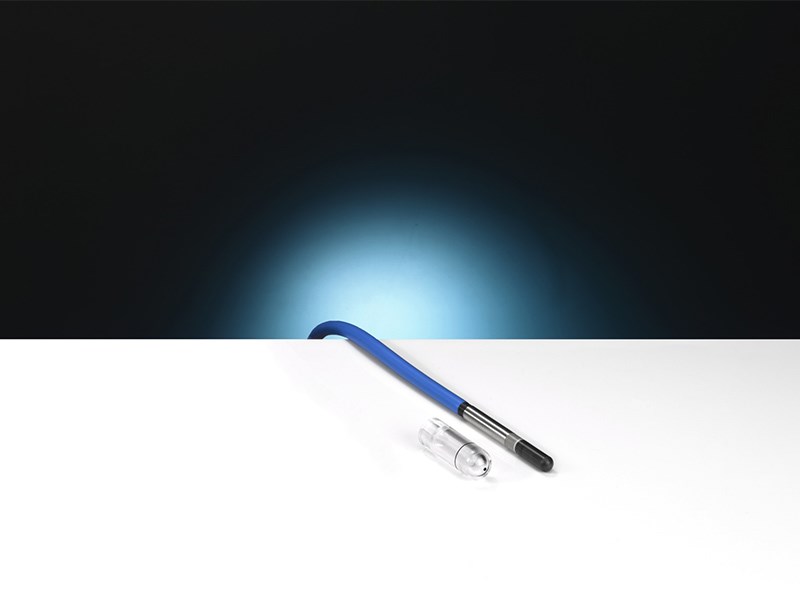

0.3 cm3 Semiflex Chamber - Type 31013

PTW

0.3 cm3 Semiflex Chamber Type 31013

0.3 cm3 Semiflex Chamber is a therapy chamber for scanning systems and for absolute dosimetry.

The unit is waterproof with semiflexible design for easy mounting in scanning water phantoms. It has increased sensitive volume for low level measurements and has a sensitive volume 0.3 cm3, vented to air.

It is possible to have a radioactive check device (option). The 31013 semiflexible chamber is ideal for precise dose measurements aswell as scanning water phantom systems.

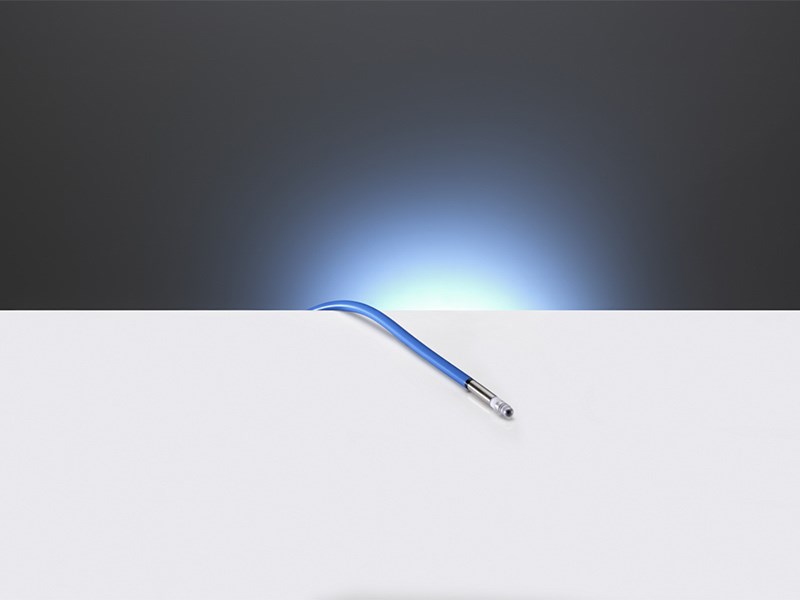

0.07 cm3 Semiflex 3D Chamber - Type 31021

PTW

0.07 cm3 Semiflex 3D Chamber Type 31021

The 0.07 cm3 Semiflex 3D Chamber is a standard therapy chamber with excellent 3D characteristics for scanning systems and for absolute dosimetry.

It is waterproof and has a semiflexible design for easy mounting in scanning water phantoms.

The semiflex 3D Chamber has excellent 3D characteristics and a sensitive volume of 0.07 cm3.

The Semiflex 3D Chamber outperforms all requirements of IEC 60731 and AAPM TG-51 aswell as it is designed for axial and radial irradiation.
