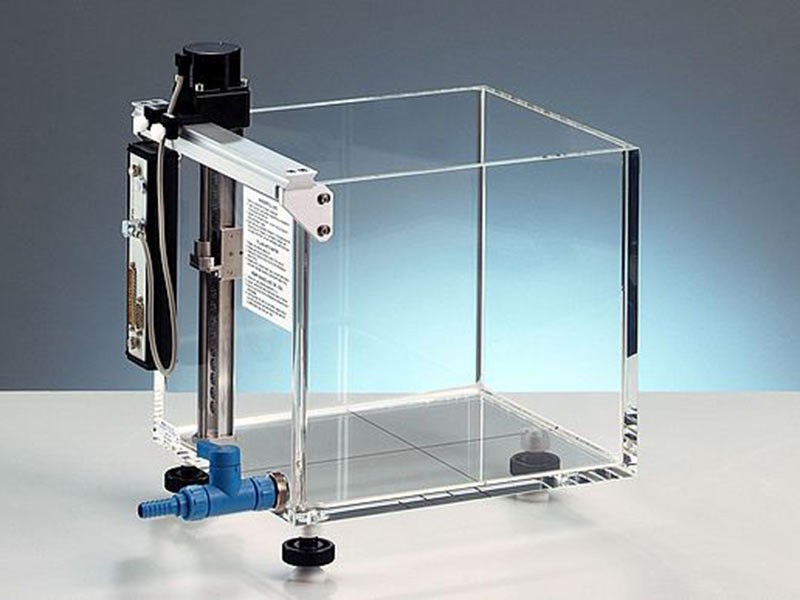

MP1-M Phantom Tanks
MP1-M Phantom Tanks

PTW

MP1-M Phantom Tanks

The PTW MP1 and MP1-M are a 1D water phantoms to be used for absolute dosimetry and measurement of depth dose curves. These tanks are small 1D phantoms for depth dose measurement. This to determine the beam qualities and to be able to measure the absolute doses according to international dosimetry protocols. The MP1 tank is remote controlled.

The MP1 tank requires a TBA electronics and MEPHYSTOmc² software to be in operation. In case you are using the MP1-M tank the detector positions are adjusted manually. The MP1-M tank is equipped with a precise moving mechanism aswell as a digital display of the detector position.

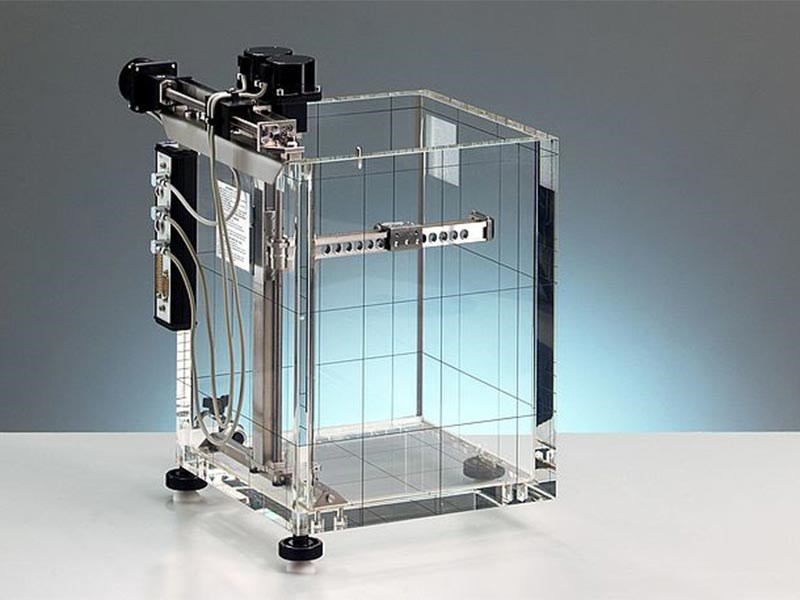

MP3 XS Phantom Tank

PTW

MP3-XS Phantom Tank

The MP3-XS Phantom Tank is a small size motorized 3D water phantom for automatic dose distribution measurement of radiation therapy beams.

The unit has a high precision and small volume 3D water tank, especially designed for stereotactic or IORT dose distribution measurements.

The MP3-XS Phantom Tank has a 3D stainless steel moving mechanism with high speed stepper motors.
The unit has a small 3D phantom for remote-controlled dose distribution measurements of small radiation fields which can be used for example in stereotaxy or intra-operation radiation therapy IORT.

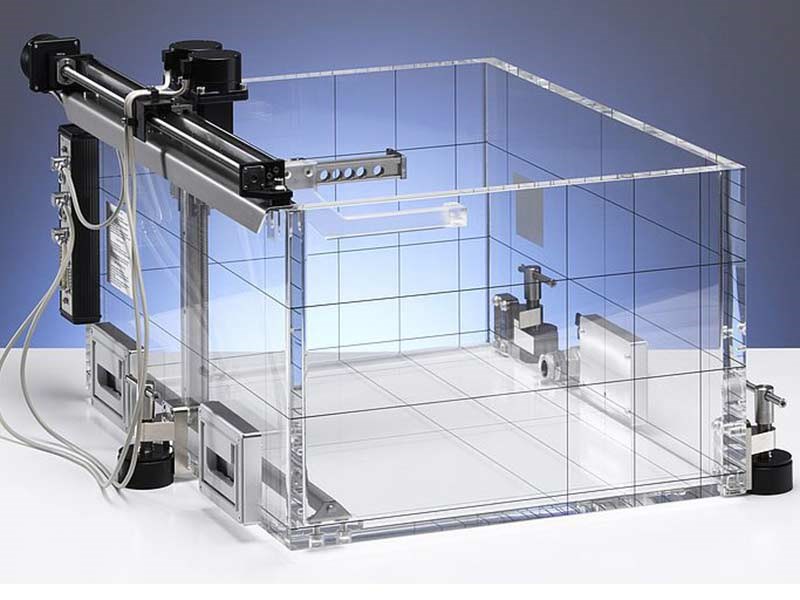

MP3 T Phantom Tank

PTW

MP3-T Phantom Tank

The MP3-T Phantom Tank is a 3D water phantom for automatic dose distribution measurement at TomoTherapy® treatment units.

The Phantom Tank has a high precision 3D water tank. The MP3-T Phantom Tank has been optimized in size, moving range and motor positions for TomoTherapy® Hi·Art® Systems and treatment units with dynamic arc techniques.

The Tank has 3D stainless steel moving mechanism with high speed stepper motors.

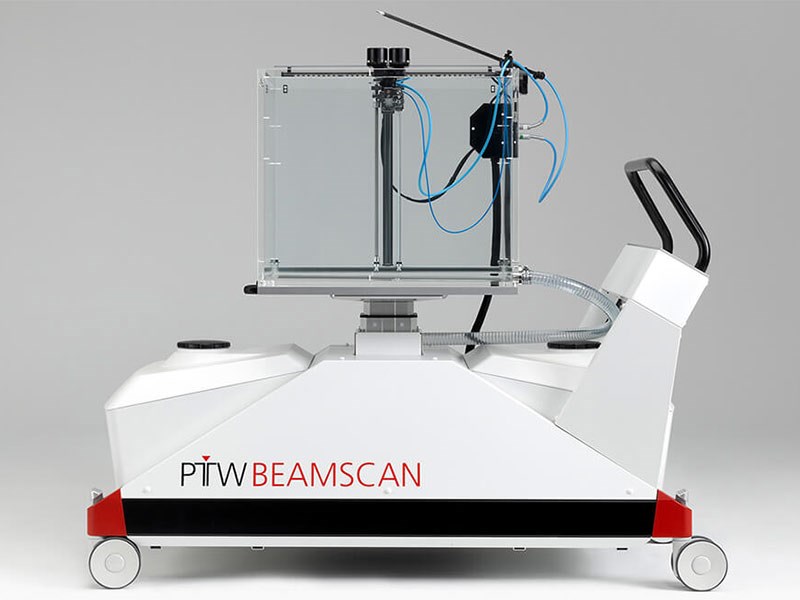

BEAMSCAN Water Phantom

PTW

BEAMSCAN Water Phantom

The BEAMSCAN Water Phantom is an all-in-one 3D water phantom system for automatic dose distribution measurement of radiation therapy beams.

The BEAMSCAN Water Phantom has a all built-in design ready for use straight out of the box. It is also fully automated with BEAMSCAN wireless setup with wizard on any smart device.

The BEAMSCAN Water Phantom has a fully automatic virtual tank leveling (TRULEVELTM) and auto field alignment.

The wireless operation and data transfer. The unit has a built-in, high-precision electrometer aswell as an easy clip-in detector installation with TRUFIX BS.

The BEAMSCAN Water Phantom gives the posibility to optimized workflows from scanning to protocolbased documentation.

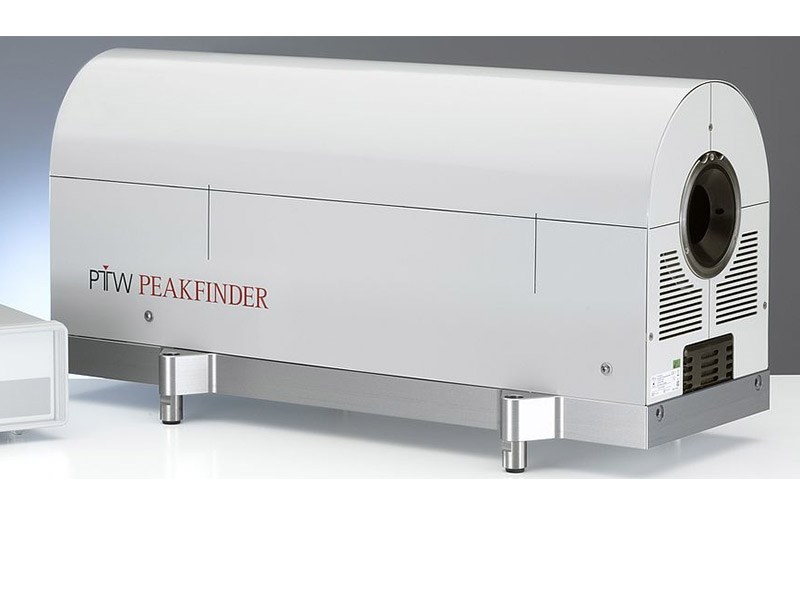

PEAKFINDER Water Column

PTW

The PEAKFINDER Water Column

The PEAKFINDER Water Column is a Water column system for highest precision peak detection in proton and heavy ion therapy. It measures position of Bragg peak within (20 … 350) mm with a spatial resolution of 10 µm.

The PEAKFINDER Water Columnhas has built-in monitor and measuring chambers. It also has a gate input for spill-by-spill measurements.

The unit is especially designed for highest precision peak detection of proton and heavy ion beams in particle therapy.

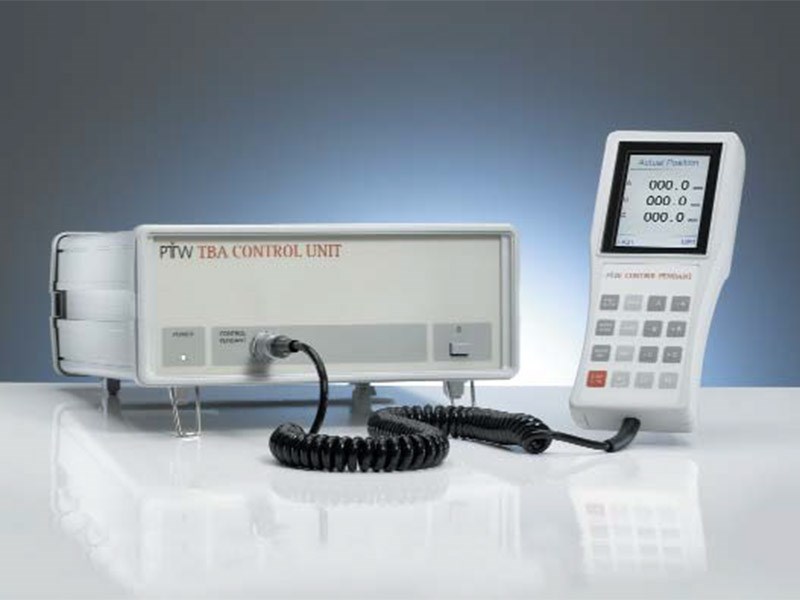

TBA Electronics

PTW

TBA Electronics

The TBA Electronics are electronic devices for detector positioning by automatic and manual control with TBA therapy beam analyzers.

The TBA Electronics Control unit is for fast and precise stepper motor control. It has a control pendant with displays for all three moving axes.

This control unit powers up to three stepper motors as used for the TBA phantom tanks and other TBA scanning devices.

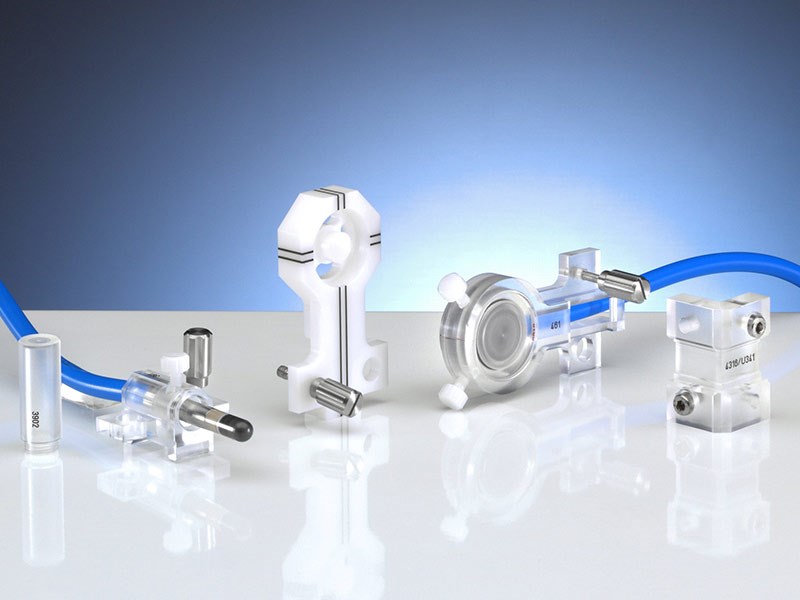

TRUFIX Detector Posistioning

PTW

TRUFIX® Detector Positioning

The TRUFIX® Detector Positioning positions is the effective point of measurement of different therapy detectors specific to the water surface in TBA systems.

The TRUFIX® Detector is to do the positioning of effective points of measurement of detectors on the water surface.

The detector has interchangeability of various detector types without resetting the effective points of measurement.

The TRUFIX® Detector can also be used for horizontal irradiation aswell as it maintains minimum distance to the metal parts of the moving mechanism.

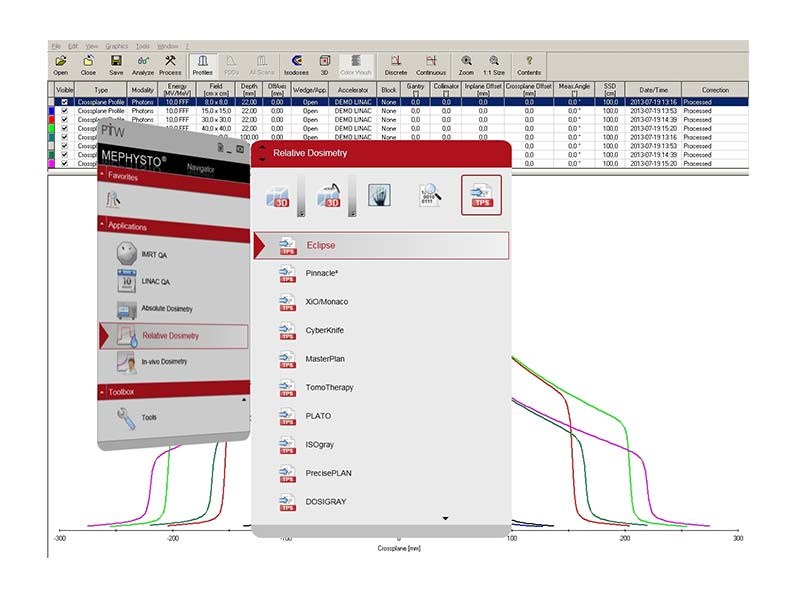

MEPHYSTO® mc2 Software TBA Software with MEPHYSTO® Navigator

PTW

MEPHYSTO® mc2 Software TBA Software with MEPHYSTO® Navigator

This software is for therapy beam data acquisition and data analysis in radiation therapy.

Some of the features in the MEPHYSTO Navigator is for all dosimetry tasks and in radiotherapy. It has a fast beam data acquisition with integrated graphical TaskList.

The MEPHYSTO® mc2 Software has a fast and accurate commissioning with batch conversion for all established RTPS.

The software supports online data analysis with linear array.
