BREAST ELASTOGRAPHY PHANTOM 059

CIRS

BREAST ELASTOGRAPHY PHANTOM 059

The BREAST ELASTOGRAPHY PHANTOM 059 is the perfect demonstration tool for sonoelastography.

This model 059 can accurately do the mimics for the ultrasonic characteristics of tissues, which can be found in an average human breast.

This BREAST ELASTOGRAPHY has the size and shape of the phantom, that simulates an average patient in the supine position. The unit is protected by a membrane.

The BREAST ELASTOGRAPHY PHANTOM with Zerdine®1 also simulates needle resistance.

The PHANTOM 059 has an improved hand-eye coordination aswell as new test equipment which makes it possible to experiment with new techniques and to instruct others. The PHANTOM 059 contains solid lesions which can be biopsied.

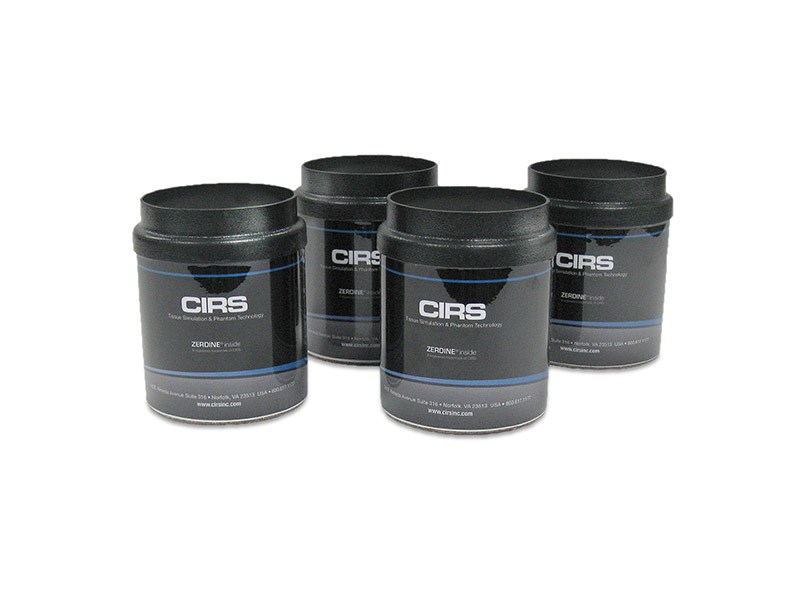

SHEAR WAVE LIVER FIBROSIS PHANTOM model 039

CIRS

SHEAR WAVE LIVER FIBROSIS PHANTOM model 039

The SHEAR WAVE LIVER FIBROSIS PHANTOM model 039 is measuring known tissue and elasticities with shear wave systems.
These Phantoms contains a set of 4. It makes it possible for each single unit and set to customise modulus values are available upon request.

The PHANTOM model 039 units are ensured dueability because of over ten years of reliable use through reinspection and repair services.

The Model 039 Phantom consists of four phantoms in the package. Each of the Phantoms are filled with Zerdine® gel formulated with differing values of Young’s modulus. It has a tissue-average speed of sound of 1540 m/s and speckle contrast levels matching that of a healthy of a liver.

The Phantom package model 039 set contains phantoms with Young’s Modulus Values, which is spanning the range of healthy livers to those with cirrhosis.

The specification is as follows: Phantom 1: 3 kPa, Phantom 2: 12 kPa, Phantom 3: 27 kPa and phantom 4: 48 kPa.

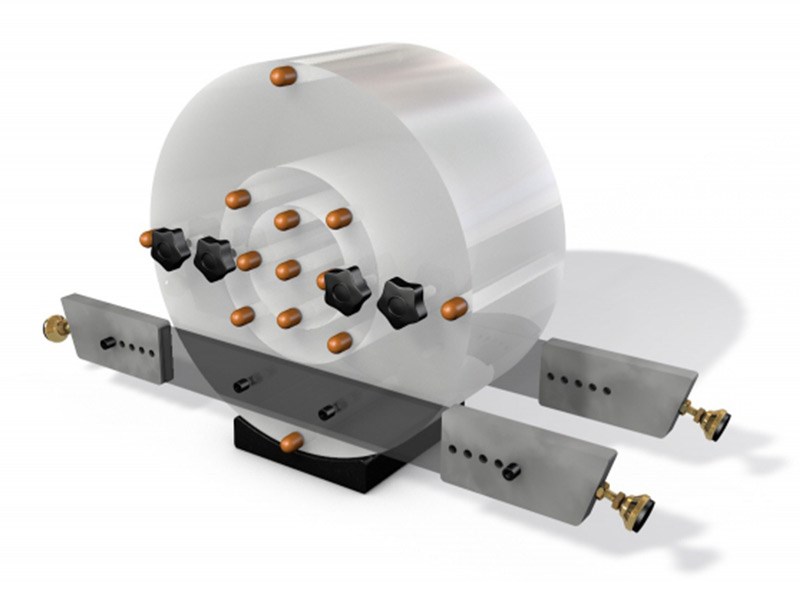

PMMA CT DOSE4 PHANTOM MODEL 007A

CIRS

PMMA CT DOSE4 PHANTOM MODEL 007A

The PMMA CT DOSE4 PHANTOM MODEL 007A does comply with FDA performance standard. The Phantom is designed for all computed tomography systems aswell as measuring the CT Dose Index.

The PHANTOM MODEL 007A consists of PMMA disks, a set of nesting 15 cm thick solid disks. Each has a measuring of 16 cm (head) and 32 cm (body) in diameter. The adult head disk is suitable for pediatric body measurements.

The PHANTOM MODEL 007A also includes a third nesting disk. This disk measures 10 cm in diameter for pediatric head measurements. To ease the handling there are handles on the body and head. This to make it easier to maneuvere.

The PMMA CT DOSE4 PHANTOM MODEL 007A has an abdominal, Adult Head, Pediatric Head configurations.

The Phantom has PMMA disks and plugs with a density of 1.19 g/cc aswell as 1.31 cm diameter holes sized for standard CT Dose probes. The nesting PMMA disks minimize storage space. The Phantom is compatible with all CT scanners.

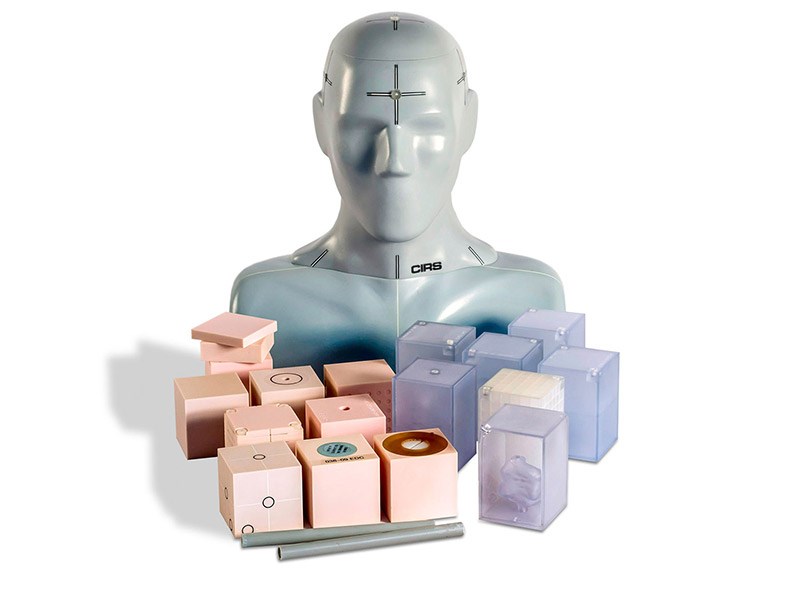

Stereotoctic End-to-End-verification Phantom model 038

CIRS

Stereotoctic End-to-End-verification Phantom model 038

The stereotoctic End-to-End-verification Phantom model 038 is a high fidelity simulation for your SRS program, SRS commissioning and treatment verification.

To provide the Stereotactic Radiosurgery (SRS) on Phantom model 038 it is required that there is a very a high degree of accuracy in target localization and dose delivery. Just small errors can result in significant failures in treatment of portions of the tumor volume. This may result in an overdose of nearby normal tissues.

This Stereotactic End-to-End Verification Phantom (STEEV) provides a possility to check every step the patient will undergo during the treatment process. Which means from diagnostic imaging with CT, MR and PET, to treatment plan verification.

The special STEEV system accommodates a variety of interchangeable tissue equivalent inserts. Which are suitable for small field dosimetry like micro- and pinpoint ion chambers, film, MOSFET, TLD, OSL (nanoDotTM*) and 3D gel. When it is in use in connection with the various imaging inserts, STEEV is the best end-to-end testing and QA solution for SRS systems.

The Phantom model 038 is performing end-to-end testing for commissioning as directed by AAPM TG-101. It is able to verify patient positioning using frame/frameless systems, head and shoulder masks or other positioning fixation devices aswell as the ability of verifing patient treatment plan in critical regions.

The stereotoctic End-to-End-verification Phantom model 038 provides geometric machine QA; Winston-Lutz isocenter verification tests and localization/repositioning with couch shift. It is possible to use IGRT QA procedure for X-ray and onboard kV and MV imagers including CBCT.

The phantom model 038 gives assess to image fusion, image transfer QA, accuracy verification and TPS testing with Multi-modality imaging capabilities (CT, MRI and PET).

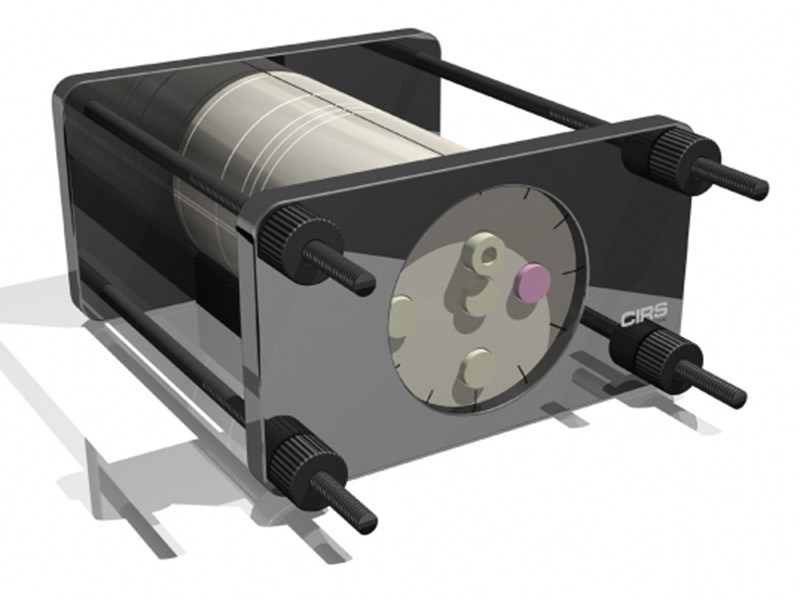

IMRT-Phantom-Head and Neck Region model 002HN

CIRS

IMRT-Phantom-Head and Neck Region model 002HN

The IMRT-Phantom-Head and Neck Region model 002HN is a complete QA from CT imaging to dose verification. This 002HN IMRT Phantom has been designed to solve the complex issues in regard to the surrounding commissioning. Also in order to do the comparison of treatment planning systems. This at the same time to provide a simple reliable method of being able to make a verification of the individual patient plans and delivery.

The IMRT-Phantom-Head and Neck - 002HN can verify heterogeneity corrections aswell as correlate CTU to electron density. It can check dose distributions in sensitive areas and checks depth doses and absolute dose. It comes with 2D and 3D isodoses and can calibrate film with ion chamber.

Model 002HN has a IMRT Verification System and the IMRT phantoms are manufactured from tissue materials which are equivalent to mimic within 1% from 50 keV to 15 MeV. This for accurate simulation from CT planning to treatment delivery.

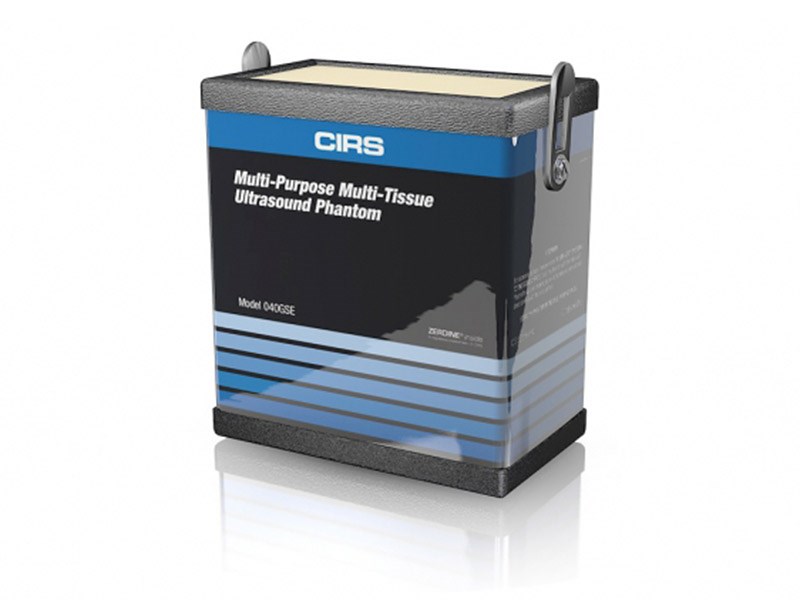

Multi-Purpose-Multi-tissue-Ultrasound-Phantom-model-040GSE

CIRS

Multi-Purpose-Multi-tissue-Ultrasound-Phantom-model-040GSE

The Multi-Purpose-Multi-tissue-Ultrasound-Phantom-model-040GSE is a standard for Ultrasound Quality Assurance. It has a unique dual attenuation design whcih allows testing on low frequency abdominal probes up to 5 MHz. It is also possible to do testing with high frequency probes to 15 MHz and higher.

The Phantom-model-040GSE has detachable water wells which allows testing of curvilinear and endocavity probes. The Phantom-model-040GSE is the only general purpose QA phantom on market with elasticity targets. The Phantoms quality and durability is ensured through over ten years of reliable use through rein- spection and repair services.

The CIRS Model 040GSE Multi-Purpose - Multi-Tissue Ultrasound Phantom is the most complete solution for performance and quality assurance testing. The design with dual frequency and detachable water wells makes it possible to test most transducer shapes this includes curvilinear and endocavity as well as frequencies. The Phantom-model-040GSE is the only QA phantom in the market that can make both elasticity targets and all the standard B-mode imaging test objects.

Some of the features of the CIRS Model 040GSE Multi-Purpose is as follows: In depth of Penetration, vertical Distance Measurement, Dead Zone Assessment, Axial and Lateral Resolution and grayscale Contrast Sensitivity.

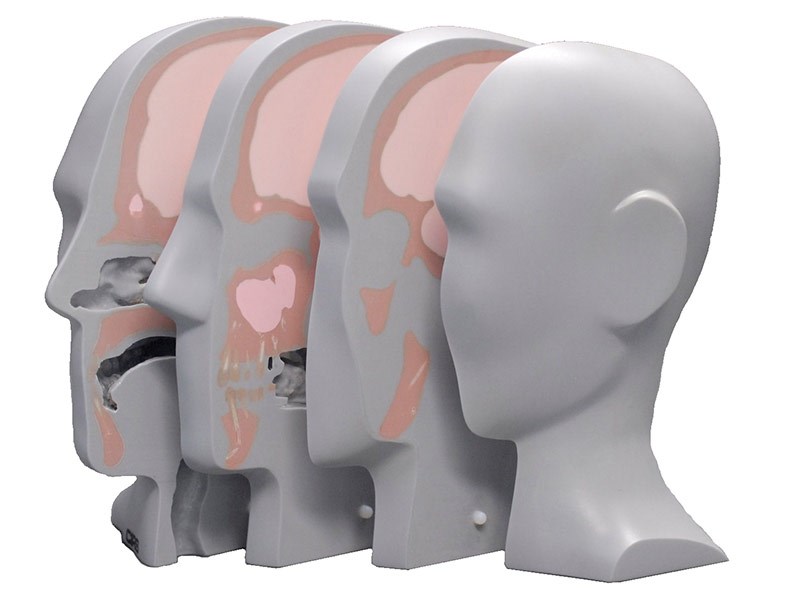

Proton Therapy Dose head Phantom model HN-731

CIRS

Proton Therapy Dose head Phantom model HN-731

The Proton Therapy Dose head Phantom model HN-731 has a tissue equivalent for proton and phonton therapy. This Proton Therapy Dosimetry Head is a head phantom with anthropomorphic phantom, which is designed to be used for commissioning and treatment planning system (TPS). It has a verification feature with any conformal or IMRT Proton Therapy system 1.

The Proton Therapy Dose head Phantom has a detailed internal anatomy including bone and air. The Phantom has three film locations in sagittal direction when beeing used.

The Phantom tissue is equivalent to protons and photons. As a special feature it is suitable for dental filling and spine prothesis.
